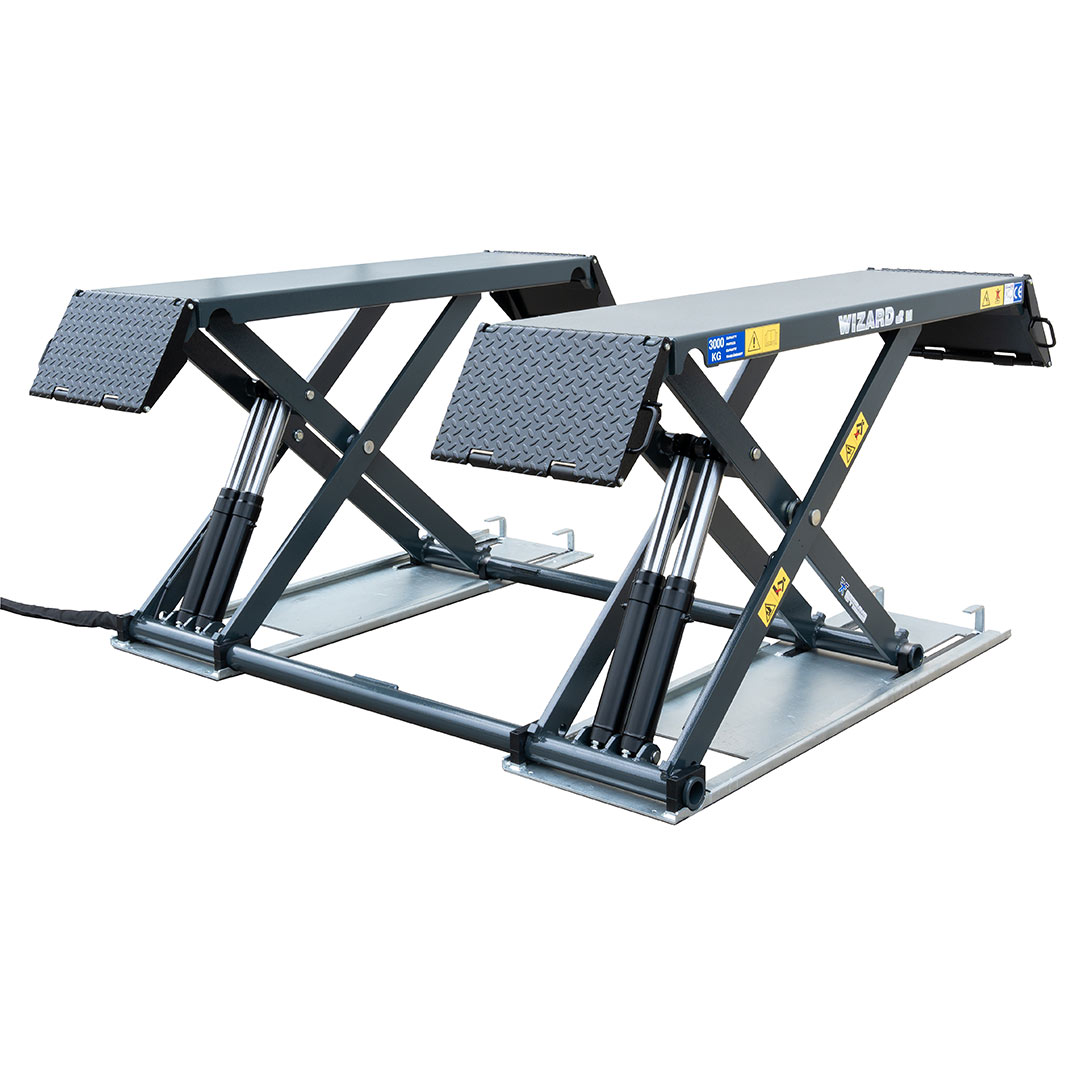

WIZARD UP30M
Capacity 3.000 Kg
VERSIONS
MOBILE
FIXED
FEATURES
- Electro-hydraulic single scissor lift for bodywork and tire change
- Platforms synchronism control guaranteed by two torsion bars.
- Mobile version with trolleys and rod for moving.
- Platforms with openable flaps
- Low minimum height: 105mm
- Hydraulic system equipped with safety mechanism in case of failure due to broken tubes.
- Installation: on floor or inground (only for fixed version).
- Standard hot galvanized base frame
- Mobile control unit with low voltage command (24v)
- Device for manual descent in case of power failure.
- Fully reversible
TECHNICAL DATA
Operation Electro-hydraulic
Capacity 3.000 Kg
Weigh 400 Kg
Lifting time 20 sec.
Lowering time 30 sec.
Motor 220 /380 V 2.2 Kw 50 Hz.
Working temp 0° / + 40°C
Working max pressure 260 bar
Currect 5,3A
DIMENSIONAL LAYOUT
